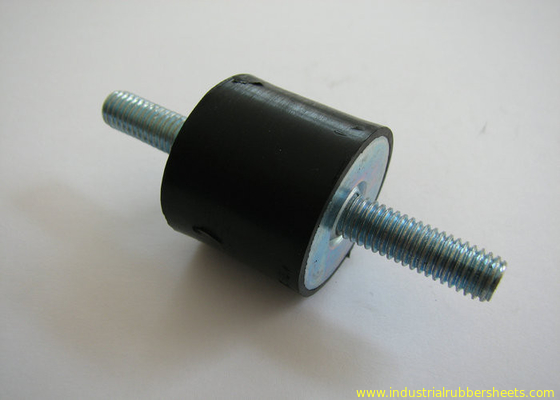

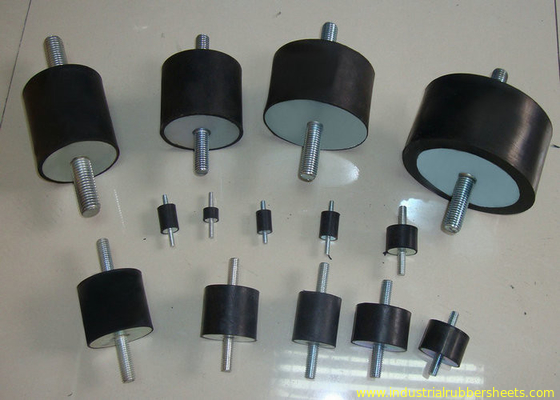

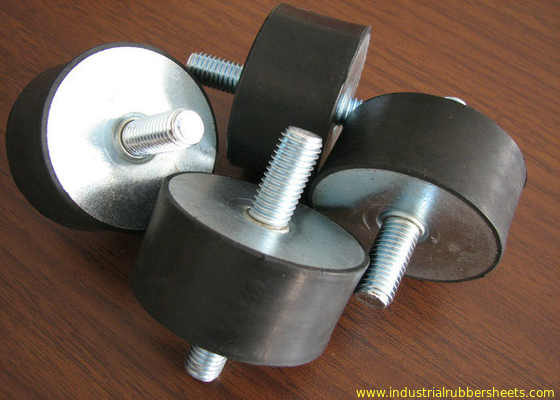

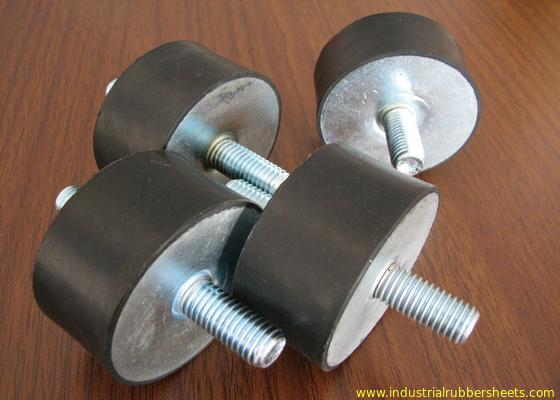

Pemasangan karet A-MM adalah salah satu sekrup shock absorber dengan teknologi profesional, formulasi yang tidak ada bandingannya dan set lengkap cetakan tanpa biaya cetakan. Kedua belah pihak adalah baut jantan yang dibuat dengan logam dilapisi seng berkualitas tinggi dan cakram standar, karet berkualitas tinggi dari NR, NBR, EPDM, SBR dll. (Karet saat ini adalah NR). Terapkan untuk penyerapan anti-getaran dan kejutan untuk semua jenis mesin, termasuk bagian anti-getaran ponsel, peralatan perawatan kesehatan, bagian anti-getaran mesin, bagian komputer.
Kemasan & Pengiriman
| Detail Kemasan: | Bagian dalam adalah kantong plastik, luar adalah karton, atau bisa disesuaikan |
| Rincian pengiriman: | dalam 10-20 hari setelah menerima konfirmasi akhir Anda |
Karet ke Metal Damper Anti Getaran Gunung, Damper Karet bekas otomatis
| Informasi produk | Karet ke Metal Damper Anti Getaran Gunung, Damper Karet bekas otomatis |
| Bahan | NBR, EPDM, FKM, CR, NR, SILICONE |
| Kekerasan | 40-60shore A |
| Aplikasi | bukti anti mobil mobil anti getaran, penyerapan goncangan |
| Fitur | Daya tahan abrasi yang baik, restoratif, tahan suhu tinggi dan penyegelan yang bagus, penuaan dan bukti kimia |
| Pengobatan permukaan | Burr lenyap, tak berdaya, mulus |
| Proses produksi | Pembuatan cetakan, pencampuran bahan baku, preforming, vulkanisasi |
| Peralatan | CNC Mesin pusat, penggilingan, penggilingan, auto batching, mesin pencampuran, peralatan vulkanisasi, injeksi & kompresi peralatan vulkanisir |
| Standar | ISO9001 14001 TS16949 |
| Kapasitas | 100000 pcs / bulan |
| Merek | BYD, Ford, Mazda, Honda, Volkswagen dll. |
| Mencicipi | Sampel bisa dikirim kepada Anda untuk pengujian sebelum produksi massal |
Spesifikasi:
Bahan: logam galvanis + karet
karet: NR, NBR, EPDM, SBR dll (standarnya adalah NR)
kualitas: kelas industri
warna hitam
atas: sekrup baut
bawah: sekrup baut
permukaan: halus
kekuatan tarik: 8Mpa
kekerasan: 40, 50, 60 +/- 5shore A
pemanjangan: 350%
kepadatan: 1.4g / cm3
Ukuran: standar tanpa biaya cetakan
OEM: setuju untuk memproduksi dengan gambar pembeli
packing dalam karton
*** saat Anda memesan, pls konfirmasikan jumlah dan nomor kode produk atau gambar anda ***
Kode | A (mm) | B (mm) | M | H / I (mm) |
A0607M3 | 6 | 7 | M3 | 5 |
A0808M3 | 8 | 8 | M3 | 4-6-10 |
A1008M4 | 10 | 8 | M4 | 6.5-8-10 |
A1010M4 | 10 | 10 | M4 | 6.5-8-10 |
A1015M4 | 10 | 15 | M4 | 6.5-8-10 |
A1508M4 | 15 | 8 | M4 | 6-8-10-14 |
A1510M4 | 15 | 10 | M4 | 6-8-10-14 |
A1515M4 | 15 | 15 | M4 | 6-8-10-14 |
A1520M4 | 15 | 20 | M4 | 6-8-10-14 |
A1525M4 | 15 | 25 | M4 | 8-10 |
A1508M5 | 15 | 8 | M5 | 8-10 |
A1510M5 | 15 | 10 | M5 | 8-10 |
A1520M5 | 15 | 20 | M5 | 8-10 |
A1525M5 | 15 | 25 | M5 | 8-10 |
A1610M4 | 16 | 10 | M4 | 8-10-12 |
A1615M4 | 16 | 15 | M4 | 8-10-12 |
A1620M4 | 16 | 20 | M4 | 8-10-12 |
A1610M5 | 16 | 10 | M5 | 8-10-12 |
A1615M5 | 16 | 15 | M5 | 8-10-12 |
A1620M5 | 16 | 20 | M5 | 8-10-12 |
A2010M6 | 20 | 10 | M6 | 8-10-12-16-18-20 |
A2015M6 | 20 | 15 | M6 | 8-10-12-16-18-20 |
A2020M6 | 20 | 20 | M6 | 8-10-12-16-18-20 |
A2030M6 | 20 | 30 | M6 | 8-10-12-16-18-20 |
A2510M6 | 25 | 10 | M6 | 10-12-14-16-18-20 |
A2513M6 | 25 | 13 | M6 | 10-12-14-16-18-20 |
A2515M6 | 25 | 15 | M6 | 10-12-14-16-18-20 |
A2520M6 | 25 | 20 | M6 | 10-12-14-16-18-20 |
A2522M6 | 25 | 22 | M6 | 10-12-14-16-18-20 |
A2525M6 | 25 | 25 | M6 | 8-10-12-16-18-20 |
A2530M6 | 25 | 30 | M6 | 8-10-12-16-18-20 |
A2510M8 | 25 | 10 | M8 | 8-12-14-18-20 |
A2513M8 | 25 | 13 | M8 | 8-12-14-18-20 |
A2515M8 | 25 | 15 | M8 | 8-12-14-18-20 |
A2520M8 | 25 | 20 | M8 | 8-12-14-18-20 |
A2522M8 | 25 | 22 | M8 | 8-12-14-18-20 |
A2525M8 | 25 | 25 | M8 | 8-12-14-18-20 |
A2530M8 | 25 | 30 | M8 | 8-12-14-18-20 |
A3010M6 | 30 | 10 | M6 | 12-15-18 |
A3012M6 | 30 | 12 | M6 | 12-15-18 |
A3015M6 | 30 | 15 | M6 | 12-15-18 |
A3017M6 | 30 | 17 | M6 | 12-15-18 |
A3020M6 | 30 | 20 | M6 | 12-15-18 |
A3022M6 | 30 | 22 | M6 | 12-15-18 |
A3025M6 | 30 | 25 | M6 | 12-15-18 |
A3030M6 | 30 | 30 | M6 | 12-15-18 |
A3035M6 | 30 | 35 | M6 | 12-15-18 |
A3040M6 | 30 | 40 | M6 | 12-15-18 |
A3010M8 | 30 | 10 | M8 | 14-18-20-23-25-35 |
A3012M8 | 30 | 12 | M8 | 14-18-20-23-25-35 |
A3015M8 | 30 | 15 | M8 | 14-18-20-23-25-35 |
A3017M8 | 30 | 17 | M8 | 14-18-20-23-25-35 |
A3020M8 | 30 | 20 | M8 | 14-18-20-23-25-35 |
A3022M8 | 30 | 22 | M8 | 14-18-20-23-25-35 |
A3025M8 | 30 | 25 | M8 | 14-18-20-23-25-35 |
A3030M8 | 30 | 30 | M8 | 14-18-20-23-25-35 |
A3040M8 | 30 | 40 | M8 | 14-18-20-23-25-35 |
A4015M8 | 40 | 15 | M8 | 14-18-20-23-25-35 |
A4020M8 | 40 | 20 | M8 | 14-18-20-23-25-35 |
A4025M8 | 40 | 25 | M8 | 14-18-20-23-25-35 |
A4028M8 | 40 | 28 | M8 | 14-18-20-23-25-35 |
A4030M8 | 40 | 30 | M8 | 14-18-20-23-25-35 |
A4035M8 | 40 | 35 | M8 | 14-18-20-23-25-35 |
A4040M8 | 40 | 40 | M8 | 14-18-20-23-25-35 |
A4045M8 | 40 | 45 | M8 | 14-18-20-23-25-35 |
A4050M8 | 40 | 50 | M8 | 14-18-20-23-25-35 |
A4015M10 | 40 | 15 | M10 | 15-18.5-20-25-28-35 |
A4020M10 | 40 | 20 | M10 | 15-18.5-20-25-28-35 |
A4025M10 | 40 | 25 | M10 | 15-18.5-20-25-28-35 |
A4028M10 | 40 | 28 | M10 | 15-18.5-20-25-28-35 |
A4030M10 | 40 | 30 | M10 | 15-18.5-20-25-28-35 |
A4035M10 | 40 | 35 | M10 | 15-18.5-20-25-28-35 |
A4040M10 | 40 | 40 | M10 | 15-18.5-20-25-28-35 |
A4045M10 | 40 | 45 | M10 | 15-18.5-20-25-28-35 |
A5015M10 | 50 | 15 | M10 | 15-18.5-20-25-28-35 |
A5020M10 | 50 | 20 | M10 | 15-18.5-20-25-28-35 |
A5025M10 | 50 | 25 | M10 | 15-18.5-20-25-28-35 |
A5030M10 | 50 | 30 | M10 | 15-18.5-20-25-28-35 |
A5040M10 | 50 | 40 | M10 | 15-18.5-20-25-28-35 |
A5045M10 | 50 | 45 | M10 | 15-18.5-20-25-28-35 |
A5050M10 | 50 | 50 | M10 | 15-18.5-20-25-28-35 |
A6030M10 | 60 | 30 | M10 | 15-18.5-20-25-28-35 |
A6035M10 | 60 | 35 | M10 | 15-18.5-20-25-28-35 |
A6040M10 | 60 | 40 | M10 | 15-18.5-20-25-28-35 |
A6045M10 | 60 | 45 | M10 | 15-18.5-20-25-28-35 |
A6050M10 | 60 | 50 | M10 | 15-18.5-20-25-28-35 |
A6030M12 | 60 | 30 | M12 | 28-37 |
A6035M12 | 60 | 35 | M12 | 28-37 |
A6040M12 | 60 | 40 | M12 | 28-37 |
A6045M12 | 60 | 45 | M12 | 28-37 |
A6050M12 | 60 | 50 | M12 | 28-37 |
A7030M12 | 70 | 30 | M12 | 28-37 |
A7040M12 | 70 | 40 | M12 | 28-37 |
A7050M12 | 70 | 50 | M12 | 28-37 |
A7525M12 | 75 | 25 | M12 | 28-37 |
A7530M12 | 75 | 30 | M12 | 28-37 |
A7540M12 | 75 | 40 | M12 | 28-37 |
A7545M12 | 75 | 45 | M12 | 28-37 |
A7550M12 | 75 | 50 | M12 | 28-37 |
A8080M12 | 80 | 80 | M12 | 35-45-57 |
A8080M16 | 80 | 80 | M16 | 35-45-57 |
A10040M16 | 100 | 40 | M16 | 35-45-57 |
A10050M16 | 100 | 50 | M16 | 35-45-57 |
A10055M16 | 100 | 55 | M16 | 35-45-57 |
A10060M16 | 100 | 60 | M16 | 35-45-57 |
A100100M16 | 100 | 100 | M16 | 35-45-57 |
