Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Tipe: | Tipe L | Warna: | |
|---|---|---|---|
| Permukaan: | Halus | Kekuatan tarik: | |
| Kekerasan: | Elongasi: | ||
| Kepadatan: | Ukuran: | Ukuran standar |

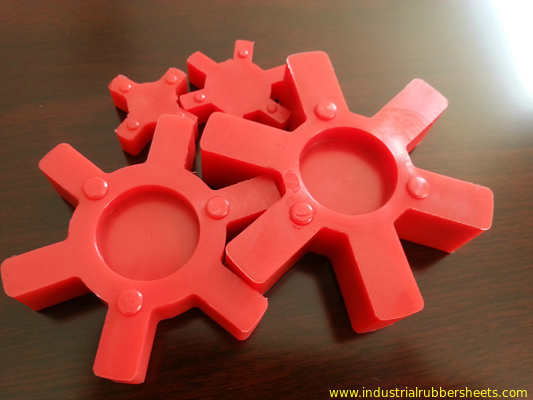

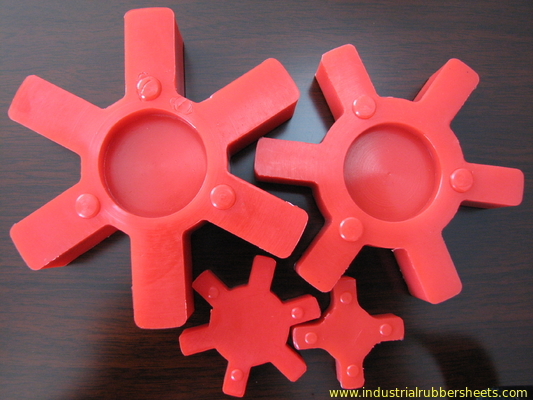

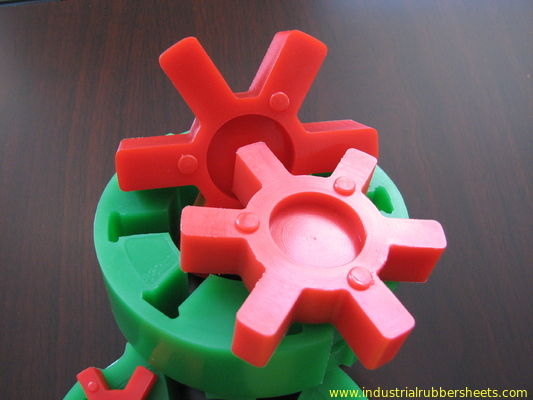

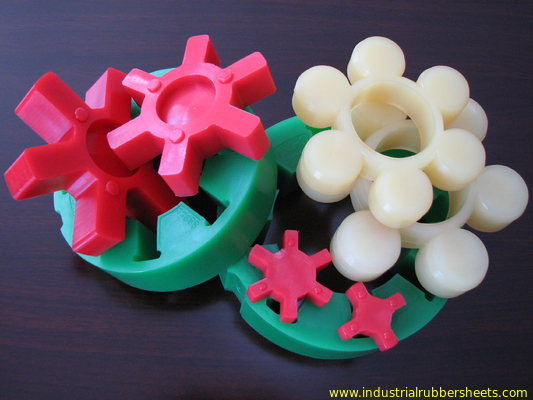

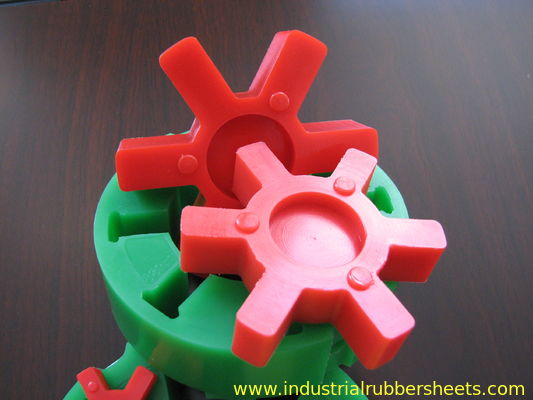

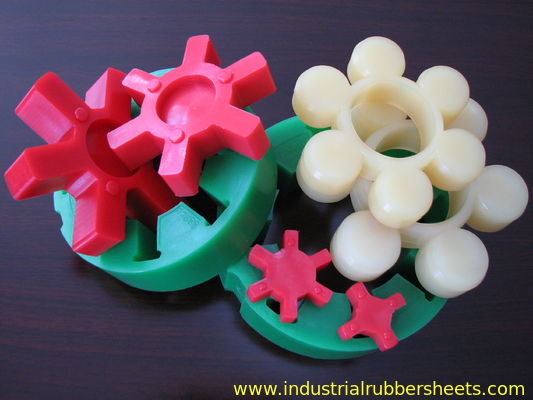

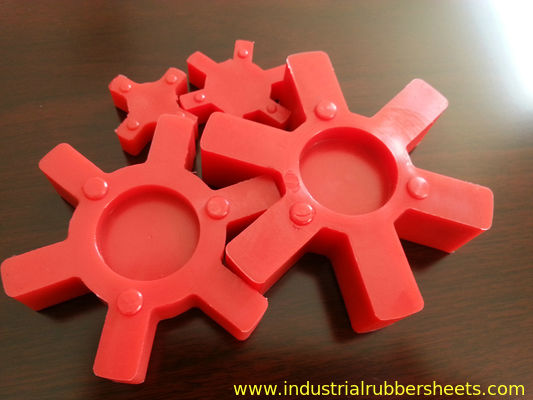

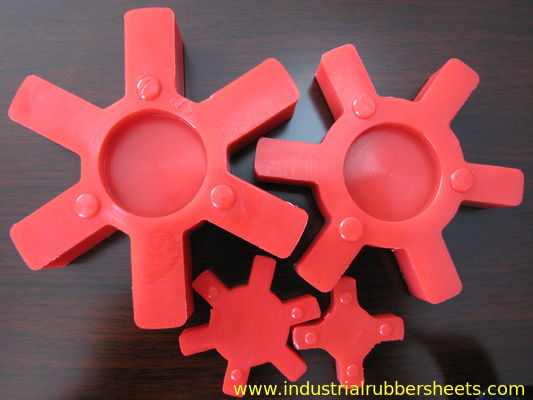

L Tipe PU Coupling, Polyurethane Coupling Dengan Semua Jenis Warna
Bahan: | NBR, CSM / SBR atau TPU | Warna: | Hitam, Merah |
| Kekerasan: | 80-98shore A | Ukuran: | L035-225 |
| Suhu Kerja: | -20oC - + 100oC |
L jenis karet kopling, L kopling poliuretan, L PU kopling
Spesifikasi
1. Material: besi cor GG25
2. Stabilitas yang baik
3. Mudah dipelihara
4. sertifikat ISO9001-2000
Kopel:
1. Kopling jaw / kopling HRC / kopling KC / kopling FL
2. Flens cast iron, Insert Bubber
3. Taper bor seri universal
4. Dimensi kunci sesuai dengan standar DIN6885, GB1095-1979.
Ukuran | Mengetik | SEBUAH | B | D | E | Standar | Metric Bore | Inch Bore | ||
| Membosankan | Min | Maks | Min | Maks | ||||||
| L035 | 1 | 16 | 20.5 | 6.6 | - | 3 | 3 | 8 | 1/8 " | 3/8 " |
| L050 | 1 | 28 | 43.2 | 15.6 | - | 6 | 6 | 15 | 3/16 " | 5/8 " |
| L070 | 1 | 35 | 50,8 | 19 | - | 9 | 9 | 19 | 3/16 " | 3/4 " |
| L075 | 1 | 45 | 54.7 | 21 | - | 9 | 9 | 25 | 3/16 " | 1 " |
| L090 | 1 | 54 | 54.7 | 21 | - | 9 | 9 | 28 | 3/16 " | 1 1/8 " |
| L095 | 1 | 54 | 63.7 | 25.5 | - | 9 | 9 | 28 | 3/8 " | 1 1/8 " |
| L099 | 1 | 64.5 | 72.5 | 27 | - | 12 | 12 | 35 | 7/16 " | 1 3/8 " |
| L100 | 1 | 64.5 | 88.5 | 35 | - | 12 | 12 | 35 | 7/16 " | 1 3/8 " |
| L110 | 1 | 85 | 108 | 43 | - | 15 | 15 | 48 | 1/2 " | 1 7/8 " |
| L150 | 1 | 96 | 115.4 | 45 | - | 15 | 15 | 48 | 5/8 " | 1 7/8 " |
| L190 | 1 | 115 | 133.4 | 54 | 101.6 | 19 | 19 | 55 | 5/8 " | 2 1/4 " |
| L225 | 1 | 127 | 153.4 | 64 | 108 | 19 | 19 | 65 | 3/4 " | 2 5/8 " |
Ukuran standar lainnya untuk kopling poliuretan:
GR14, GR19, GR24, GR28, GR18, GR2, GR18, GR1, GR110,
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90 / 95, L99 / 100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
ukuran standar untuk kopling karet:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90 / 95, L99 / 100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
ukuran khusus membangun cetakan sesuai dengan gambar pembeli
*** saat Anda bertanya, pls konfirmasi nomor dan kuantitas produk **
