Keuntungan:
1. Memperbaiki Taper Bush Memungkinkan Majelis yang Cepat dan Mudah
2. Simple Alignment oleh Straight Edge
3. Mengakomodasi Misalignment Kecil
4. Tersedia sebagai tipe flensa F, bush dipasang dari dalam, dan semak flensus H, disisipkan dari muka luar.

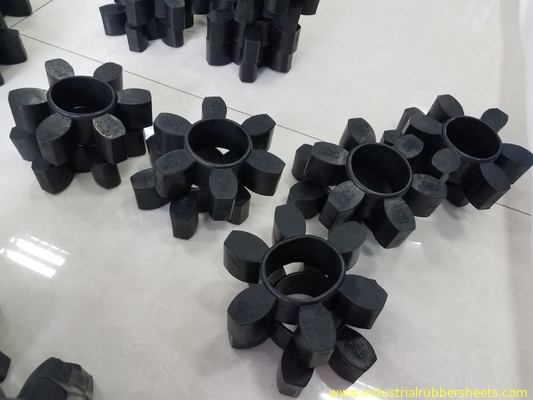

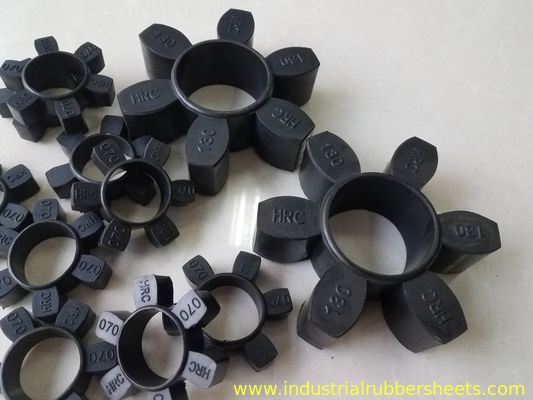

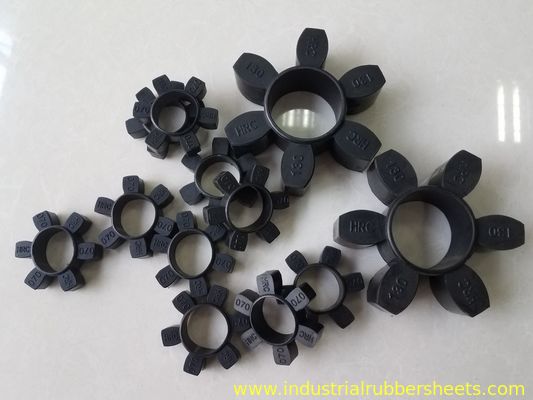

| Barang | HRC280 | HRC230 | HRC180 | HRC150 | HRC130 | HRC110 | HRC90 | HRC70 |
| OD (mm) | 252 | 201 | 160 | 133 | 115.3 | 95.8 | 72.4 | 58.3 |
| ID (mm) | 119.4 | 97 | 76 | 62 | 49.4 | 43.7 | 31.2 | 29.6 |
| Ketebalan (mm) | 50.4 | 42.3 | 32 | 28 | 22 | 19.4 | 15.4 | 11.9 |
| Berat (g) | 1500 | 780 | 400 | 270 | 155 | 90 | 55 | 20 |
Spesifikasi:
| bahan | TPU, CSM / SBR, NBR, nilon dll. |
| warna | kuning, merah, ungu, hijau, hitam, krem dll. |
| permukaan | halus |
| daya tarik | 8-55Mpa |
| kekerasan | 70-98Core A |
| pemanjangan | 400% -650% |
| massa jenis | 1.25g / cm3 |
| dampak elastisitas | > 25% |
| kekuatan sobek | 35-155KN / m |
| kehilangan abrasi akronik | <0.05cm3 / 1.61km |
| set kompresi (22h * 70oC) | <10% |
| suhu kerja | 120oC |
ukuran standar untuk kopling poliuretan:
GR14, GR19, GR24, GR28, GR18, GR2, GR18, GR1, GR110,
GS14, GS19, GS1, GS1, GS1, GS1, GS150
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
ML1, ML2, ML3, ML4, ML5, ML6, ML7, ML8, ML9, ML10, ML11, ML12, ML13
MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90 / 95, L99 / 100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
SBT T40, T45, T50, T60, T60, T60, T60, T60, T60, T60, T10, T1, T1, T1, T1, T1, T150, T154 , T170, T185, T190, T210
ukuran standar untuk kopling karet:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90 / 95, L99 / 100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
NOR-MEX168-10, NOR-MEX194-10, NOR-MEX214-10, NOR-MEX240-10, NOR-MEX265-10
FCL1 #, FCL2 #, FCL3 #, FCL4 #, FCL5 #, FCL6 #, FCL7 #, FCL8 #
FCL90, FCL100, FCL112, FCL125, FCL140, FCL160, FCL180, FCL200, FCL224, FCL250, FCL280, FCL315, FCL335, FCL400, FCL450, FCL560, FCL630
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J, 13J, 14J
Hytre 4H, 5H, 6H, 7H, 8H, 9H, 11H
Ban F40, F50, F60, F70, F80, F90, F100, F110, F120, F140, F160
SBT T75, T80, T85, T10, T10, T110, T105, T10, T110, T115, T140, T150, T150, T150, T1, T170, T210
ukuran standar untuk kopling nilon:
NL1, NL2, NL3, NL4, NL5, NL6, NL7, NL8, NL9, NL10
M28, M32, M38, M42, M48, M58, M65
ukuran khusus membangun cetakan sesuai dengan gambar pembeli
*** saat Anda bertanya, pls konfirmasi nomor dan kuantitas produk ***
