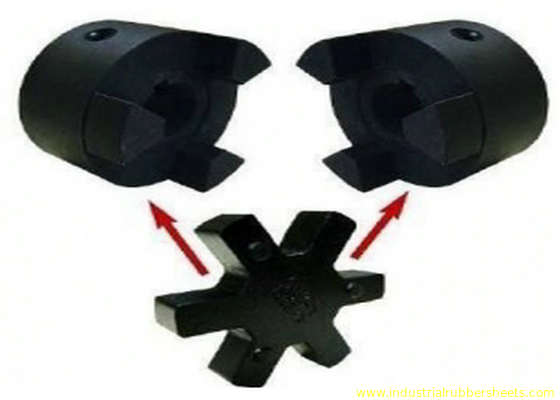

L Type Flange Cast Iron Polyurethane Coupling, Fleksibel Jaw Coupling

  • L Type Flange Polyurethane Coupling with ISO9001-2000 Certification, L035-225 Size Range, and -20oC to +100oC Working Temperature
  • L Type Flange Polyurethane Coupling with ISO9001-2000 Certification, L035-225 Size Range, and -20oC to +100oC Working Temperature
  • L Type Flange Polyurethane Coupling with ISO9001-2000 Certification, L035-225 Size Range, and -20oC to +100oC Working Temperature
  • L Type Flange Polyurethane Coupling with ISO9001-2000 Certification, L035-225 Size Range, and -20oC to +100oC Working Temperature
  • L Type Flange Polyurethane Coupling with ISO9001-2000 Certification, L035-225 Size Range, and -20oC to +100oC Working Temperature
Tempat asal Cina
Nama merek 3A Rubber
Sertifikasi ROHS/FCC/SGS
Nomor model 3A2006
Kuantitas min Order 10pieces
Harga negotiable
Kemasan rincian Dikemas dalam karton
Waktu pengiriman 10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran T/T,L/C,PayPal,Western Union
Menyediakan kemampuan 10000kgs per bulan

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

x
Detail produk
Bahan NBR, CSM/SBR atau TPU Warna Hitam, merah
Kekerasan 80-98pantai a Ukuran L035-225
Suhu kerja -20oC - +100oC
Menyoroti

pu coupling

,

kopling rahang fleksibel
Tinggalkan pesan
Deskripsi Produk

Lipling tipe karet, l poliuretane kopling, kopling l pu

Spesifikasi

1. Bahan: besi cor GG25
2. Stabilitas yang baik
3. Mudah dipertahankan
4. Sertifikat ISO9001-2000



Kopel:

1. Kopling rahang / kopling HRC / kopling kc / kopling FL

2. Flange Cast Iron, masukkan bubber

3. Taper Bore Universal Series

4. Dimensi Keyway sesuai dengan standar DIN6885, GB1095-1979.

L Type Flange Cast Iron Polyurethane Coupling, Fleksibel Jaw Coupling 0

Ukuran Jenis A B D E Standar Bore metrik Inch bore
Membosankan Min Max Min Max
L035 1 16 20.5 6.6 - 3 3 8 1/8 " 3/8 "
L050 1 28 43.2 15.6 - 6 6 15 3/16 " 5/8 "
L070 1 35 50.8 19 - 9 9 19 3/16 " 3/4 "
L075 1 45 54.7 21 - 9 9 25 3/16 " 1 "
L090 1 54 54.7 21 - 9 9 28 3/16 " 1 1/8 "
L095 1 54 63.7 25.5 - 9 9 28 3/8 " 1 1/8 "
L099 1 64.5 72.5 27 - 12 12 35 7/16 " 1 3/8 "
L100 1 64.5 88.5 35 - 12 12 35 7/16 " 1 3/8 "
L110 1 85 108 43 - 15 15 48 1/2 " 1 7/8 "
L150 1 96 115.4 45 - 15 15 48 5/8 " 1 7/8 "
L190 1 115 133.4 54 101.6 19 19 55 5/8 " 2 1/4 "
L225 1 127 153.4 64 108 19 19 65 3/4 " 2 5/8 "



Ukuran standar lainnya untuk kopling poliuretan:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
Mt1, mt2, mt3, mt4, mt5, mt6, mt7, mt8, mt9, mt10, mt11, mt12, mt13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
Falk-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R


Ukuran standar untuk kopling karet:
HB80, HB95, HB110, HB125, HB140, HB160, HB180, HB200, HB240, HB280, HB315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3j, 4j, 5j, 6j, 7j, 8j, 9j, 10j, 11j
Ukuran khusus membangun cetakan sesuai dengan gambar pembeli
*** Saat Anda bertanya, tolong konfirmasi nomor dan kuantitas produk ***
