Elemen Kopling Hytrel 4H-11H dengan Material Hypalon Dupont untuk Kinerja Suhu Tinggi dan Transmisi Daya Fleksibel Torsi

  • 4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
  • 4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
  • 4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
  • 4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
  • 4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
  • 4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
  • 4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
Tempat asal Cina
Nama merek 3A rubber
Sertifikasi ISO9001
Nomor model 3A2006
Kuantitas min Order 1piece
Harga USD10.00/piece
Kemasan rincian packing dalam karton
Waktu pengiriman 5-10 hari
Syarat-syarat pembayaran L/C,T/T,Western Union,D/P,Paypal
Menyediakan kemampuan 10000pieces/bulan
Detail produk
Bahan Dupont Hypalon Warna Merah

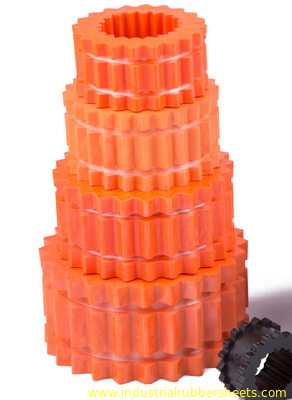

Ukuran Standar Ukuran 4H - 11H
Menyoroti

pu coupling

,

kopling karet
Tinggalkan pesan
Deskripsi Produk

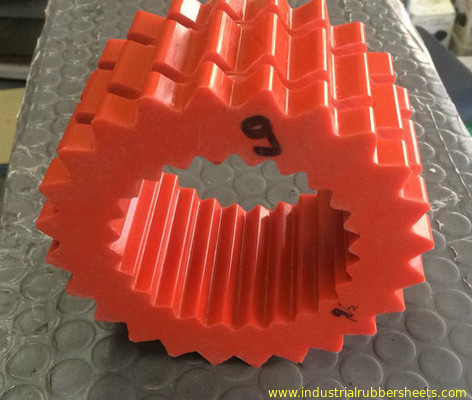

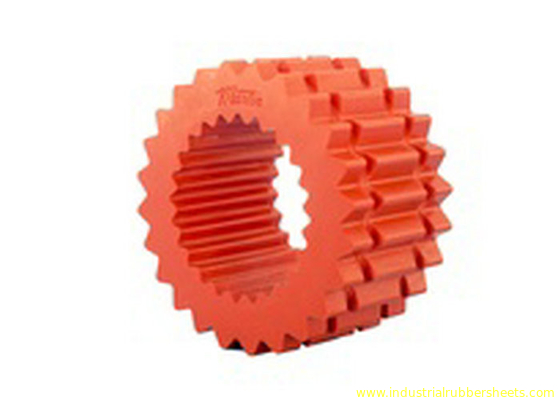

Elemen Kopling Hytrel 4H - 11H, Elemen Sure-Flex Terbuat dari Bahan Dupont Hypalon
Ikhtisar Produk

Elemen Kopling Hytrel 4H - 11H, Elemen Sure-Flex yang diproduksi menggunakan bahan Dupont Hypalon untuk kinerja dan daya tahan superior dalam aplikasi transmisi daya.

  • Selongsong Hytrel untuk Kopling Sure-Flex
  • Kinerja tinggi mengakomodasi lingkungan bersuhu tinggi
  • Kopling Sure-Flex serbaguna yang dirancang untuk transmisi daya yang fleksibel secara torsi
  • Diameter luar: 117mm
  • Torsi nominal: 324,83Nm
Spesifikasi Teknis
Item Gear 11H Gear 9H Gear 8H Gear 7H Gear 6H Gear 5H Gear 4H
OD Gear (mm) 208 152 129 110 95,3 74,6 58,7
ID Gear (mm) 122,3 87 75 64,5 54,6 44 34
Ketebalan (mm) 101,6 76,2 63,5 55,6 47,6 39,7 31,8
Jumlah Gear (buah) 24 24 24 24 20 20 18
Berat (g/buah) 2500 800 500 300 200 95 50
Ukuran Kopling Standar yang Tersedia
Kopling Poliuretan

GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180

GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS55, GS65, GS75, GS90, GS100, GS110, GS125, GR140, GR160, GR180

MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13

ML1, ML2, ML3, ML4, ML5, ML6, ML7, ML8, ML9, ML10, ML11, ML12, ML13

MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200

HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280

L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276

FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R

T40, T45, T50, T55, T60, T65, T70, T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T185, T190, T210

Kopling Karet

Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315

HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280

L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225

NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265

Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J

Ukuran khusus dibuat sesuai gambar pembeli

Kopling Nilon

NL1, NL2, NL3, NL4, NL5, NL6, NL7, NL8, NL9, NL10

Ukuran khusus dibuat sesuai gambar pembeli

Penting: Saat melakukan pertanyaan, harap konfirmasi nomor produk dan jumlah yang dibutuhkan.

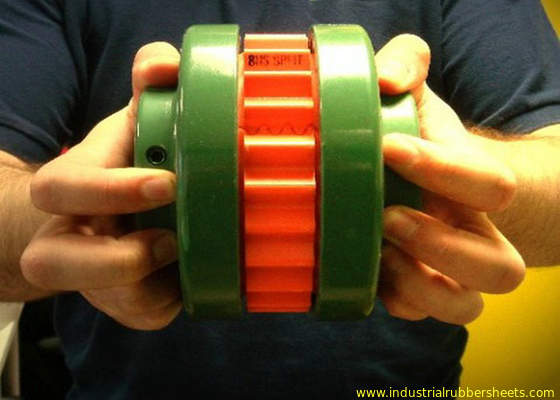

4H-11H Hytrel Coupling Element technical diagram Sure-Flex coupling element application example
