T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)

  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
Tempat asal Cina
Nama merek 3A Rubber
Sertifikasi ISO9001
Nomor model 3A1001
Kuantitas min Order 10Rolls
Harga USD250.00
Kemasan rincian pengepakan dalam gulungan, karton dan palet
Waktu pengiriman 7-15 hari setelah menerima pembayaran pembeli
Syarat-syarat pembayaran L/C, D/P, T/T, Western Union
Menyediakan kemampuan 1000 gulungan/bulan
Detail produk
Menyoroti

red silicone fiberglass fabric

,

Rogers style silicone sheet

,

T0.75mm fiberglass fabric roll
Tinggalkan pesan
Deskripsi Produk

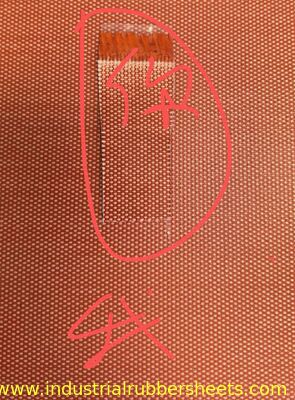

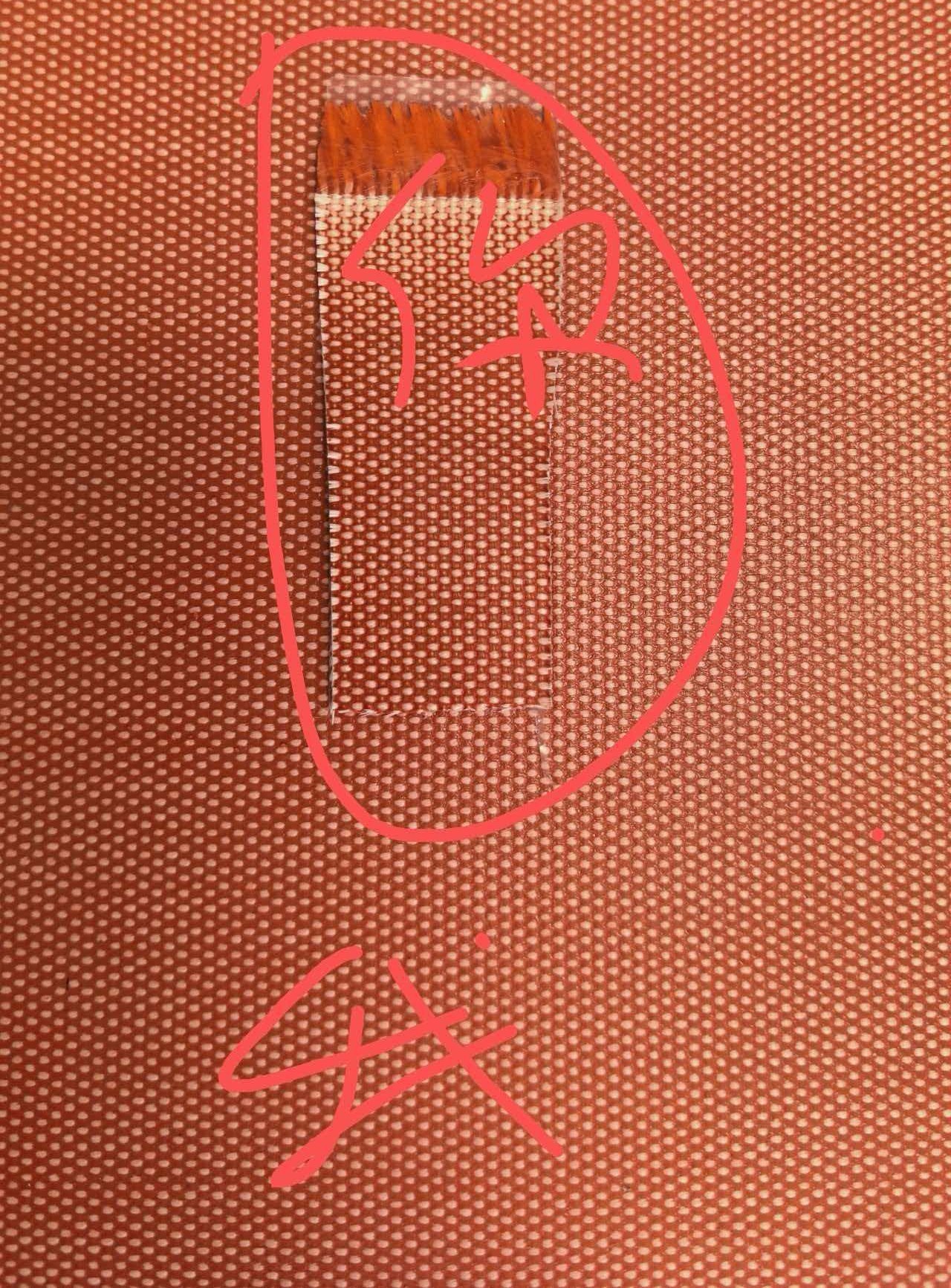

T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
Red Silicone Coated Fiberglass Fabric (Rogers Style)
Product Overview
This high-performance composite material is engineered with alkali-free fiberglass fabric as the base substrate, coated with a specialized dual-surface silicone layer. It is designed to mimic the performance characteristics of Rogers Corporation materials. One side features a thin, fully cured silicone coating for durability and release properties, while the reverse side retains a layer of uncured silicone rubber providing a tacky, self-bonding surface. Standard thickness is 0.75mm.
Key Specifications & Performance
  • Dimensions: Thickness 0.75mm x Width 1 meter x Length 10 meters per roll
  • Temperature Range: Excellent thermal stability for continuous use from -70°C to +280°C (-94°F to +536°F)
  • Electrical Insulation: High dielectric strength (Breakdown Voltage: 20~50kV/mm), Dielectric Constant approx. 3.0~3.2
  • Mechanical Properties: High tensile strength, excellent flexibility, and superior resistance to ozone, UV, oxygen, and weathering
Product Gallery

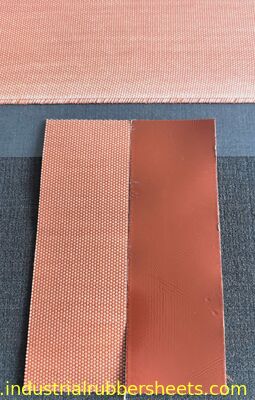

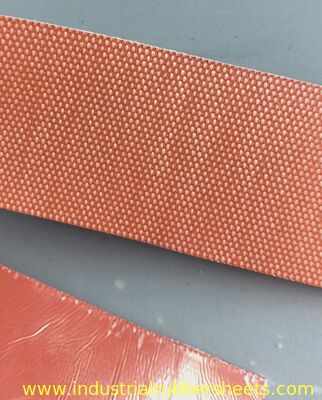

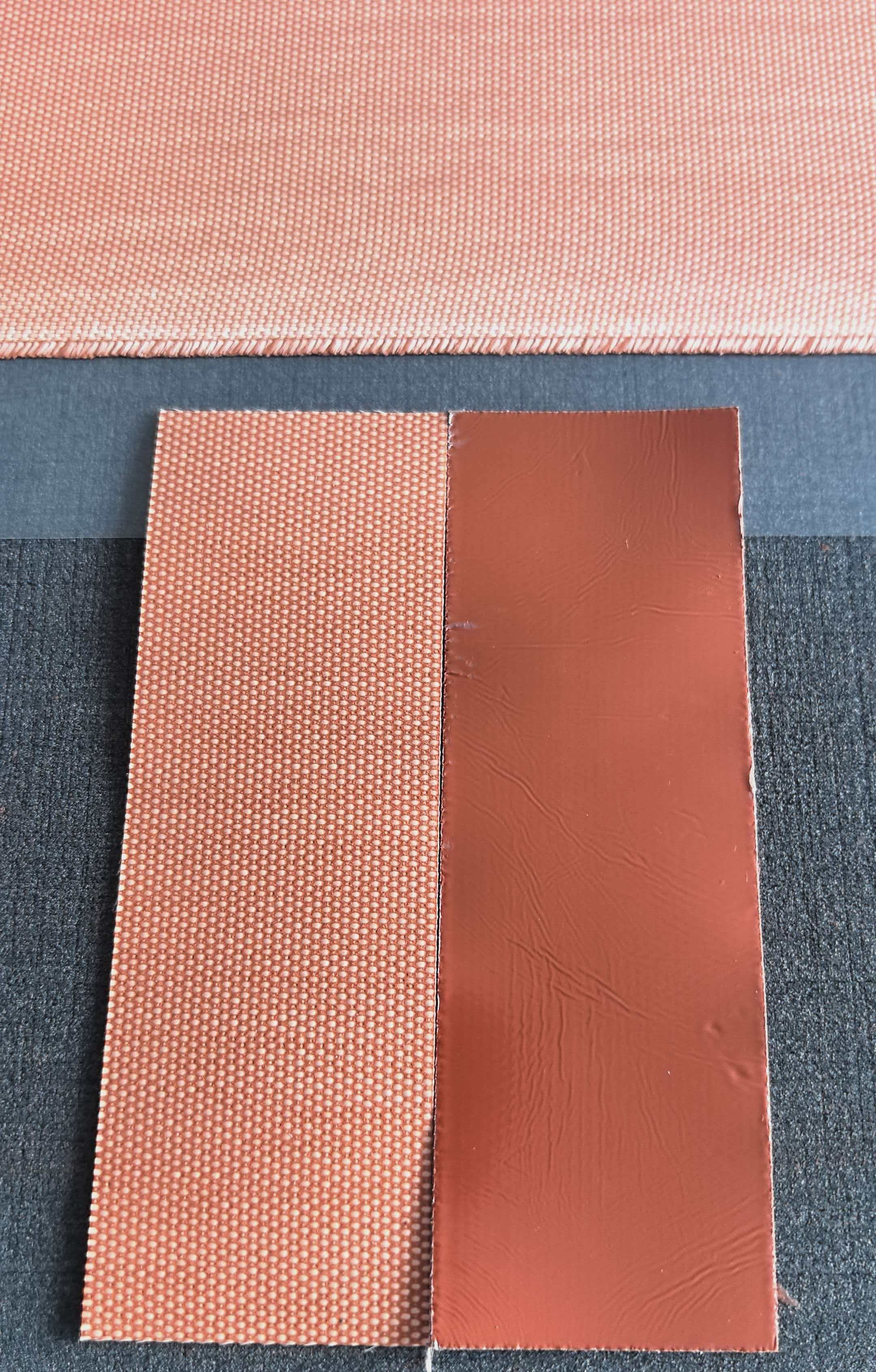

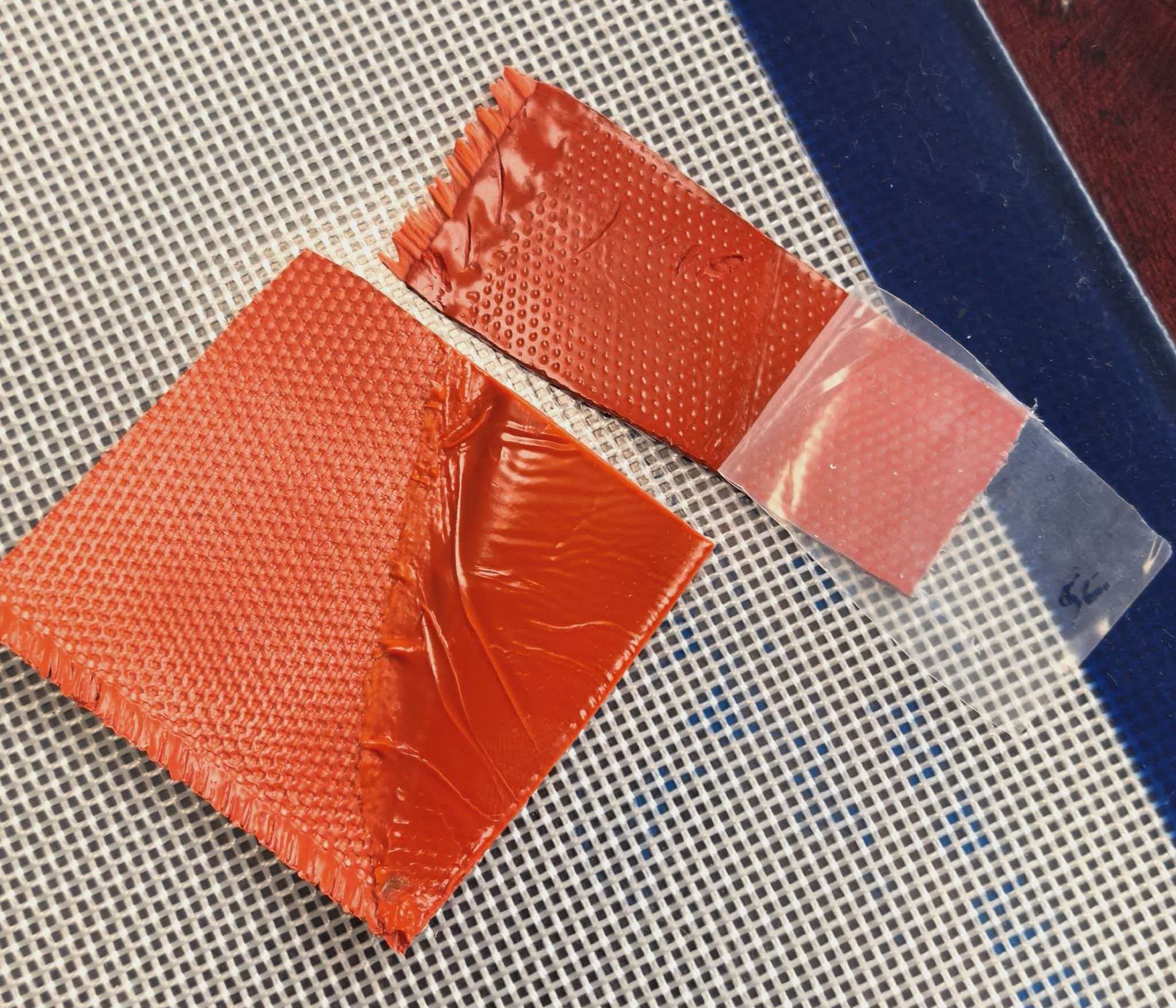

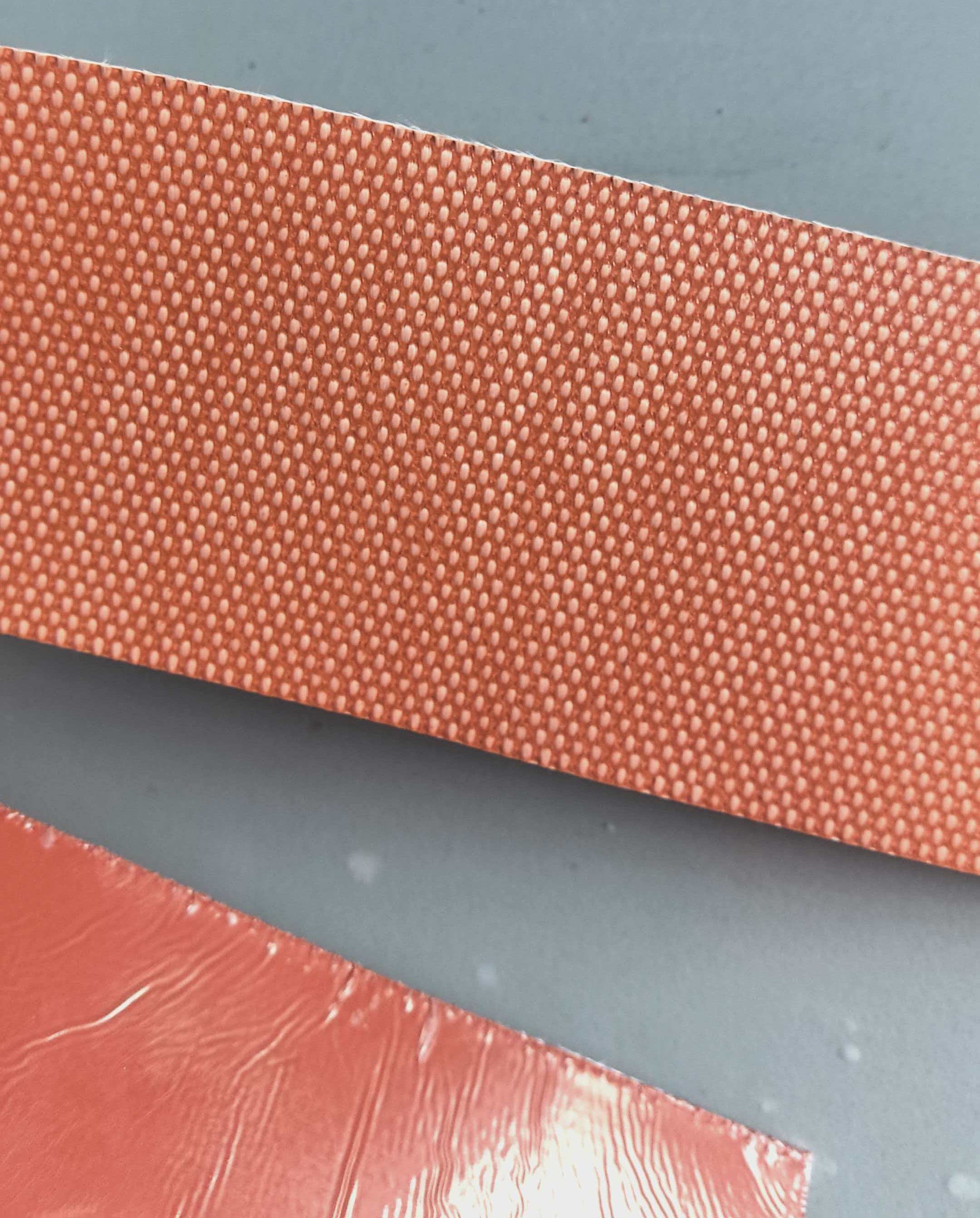

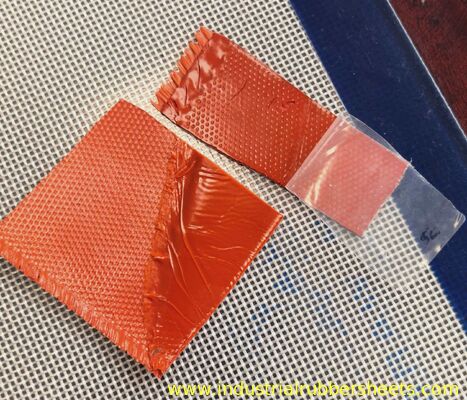

T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 0 T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 1 T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 2 T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 3 T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 4
Typical Applications
This "semi-cured" construction is ideal for applications requiring one-side chemical resistance or heat lamination bonding:
  • Heating Element Manufacturing: Wrapping material for Ni-Cr wire heating cables, defrosters, and flexible heaters
  • Molding & Press Cushioning: Used as a buffer/release sheet in the lamination of heat plates for new energy, LED manufacturing, and kitchen appliances
  • Thermal Insulation & Sealing: Fabrication of removable insulation jackets, pipe wraps, and high-temperature gaskets
  • Industrial Protection: Suitable for electrical insulation barriers and welding/heat shields where only one side requires contact protection
